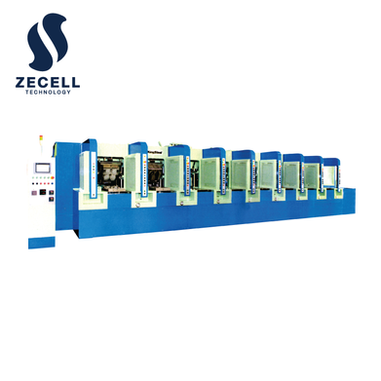

Automatic Rubber Injection Moulding Machine

Automatic Rubber Injection Moulding Machine
Model: ZT-KS-9708L1
> Rubber Injection moulding products with more stable quality and less flash that saves material consumption.
> Optional 3-4 plates mould is available for making multi-color products by inserting.
> Less operation fatigue, saving labor cost; less noise and better working environment.

1) Injection system
- Large volume and injection pressure, available for 2prs / mould (4 cavities)
- FIFO system, material can be injected completely, with better efficiency and stable quality.
2) Clamping system
- Max clamping force 200tons for both injection and curring process increase heat transferring efficiency up to 40%
- Current compression mould after modification can use on injection machine.
- Available for using compressing and injection process at same time on same machine.
- Linear design less break down issue, easy for maintenance and part replacing, with longer using life.
3) Hydraulic system
- Machine with Servo system for energy saving, reduce power consumption.
- User can order different stations (2 / 4 / 6 / 8 / 10) and different injectors (1 or 2) according to actual needs to have the flexibility and efficiency.
4) Control system
- PLC coordinate with HMI operating system, each function and setting structures are very clear and easy to understand.
